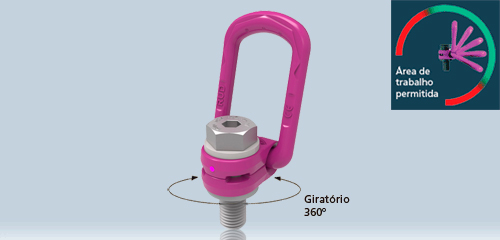

Olhal Aparafusável VLBG PLUS
Tem como característica principal o ajuste de posição em 360° para se alinhar a direção da carga. O anel de carga pode ser inclinado garantindo plena capacidade de trabalho em todas as direções. Construção precisa que permite a maior capacidade de carga com o menor diâmetro. 100% inspecionado quanto a presença de trincas. Fator de Segurança 4:1.
Carga máxima de trabalho em toneladas (t)
Modo de Içamento | Direção da Carga | VLBG 0,63t M8 | VLBG 0,9t M10 | VLBG 1,35t M12 | VLBG 2t M16 | VLBG 3,5t M20 | VLBG 4,5t M24 | VLBG 6,7t M30 | VLBG 8t M36 | VLBG 15t M42 | VLBG 20t M48 |
 |
0° | 0,63 | 0,9 | 1,35 | 2 | 3,5 | 4,5 | 6,7 | 8 | 15 | 20 |
 |
0° | 1,26 | 1,8 | 2,7 | 4 | 7 | 9 | 13,4 | 16 | 30 | 40 |
 |
90° | 0,63 | 0,9 | 1,35 | 2 | 3,5 | 4,5 | 6,7 | 8 | 15 | 20 |
 |
90° | 1,26 | 1,8 | 2,7 | 4 | 7 | 9 | 13,4 | 16 | 30 | 40 |
 |
0°-45° | 0,88 | 1,3 | 1,9 | 2,8 | 4,9 | 6,3 | 9,4 | 11,2 | 21 | 28 |
| 45°-60° | 0,63 | 0,9 | 1,35 | 2 | 3,5 | 4,5 | 6,7 | 8 | 15 | 20 |
 |
A* | 0,63 | 0,9 | 1,35 | 2 | 3,5 | 4,5 | 6,7 | 8 | 15 | 20 |
 |
0°-45° | 1,32 | 1,9 | 2,8 | 4,2 | 7,4 | 9,5 | 14,2 | 16,8 | 31,5 | 42 |
| 45°-60° | 0,95 | 1,35 | 2 | 3 | 5,25 | 6,75 | 10 | 12 | 22,5 | 30 |
 |
A* | 0,63 | 0,9 | 1,35 | 2 | 3,5 | 4,5 | 6,7 | 8 | 15 | 20 |
| Solicitar Orçamento |
|
|
|
|
|
|
|
|
|
|
| Download desenho 3D |
 |  |  |  |  |  |  |  |  |  |
| A* = Assimétrico |
Exemplo de Aplicação
|
|
|
|
Faça o Download do Catálogo completo
|
